TIG welding stainless steel in food processing and pharmaceutical facilities demands precision techniques that go far beyond standard welding practices. Master these critical skills to meet stringent sanitary standards and build a career in two highly regulated manufacturing sectors.

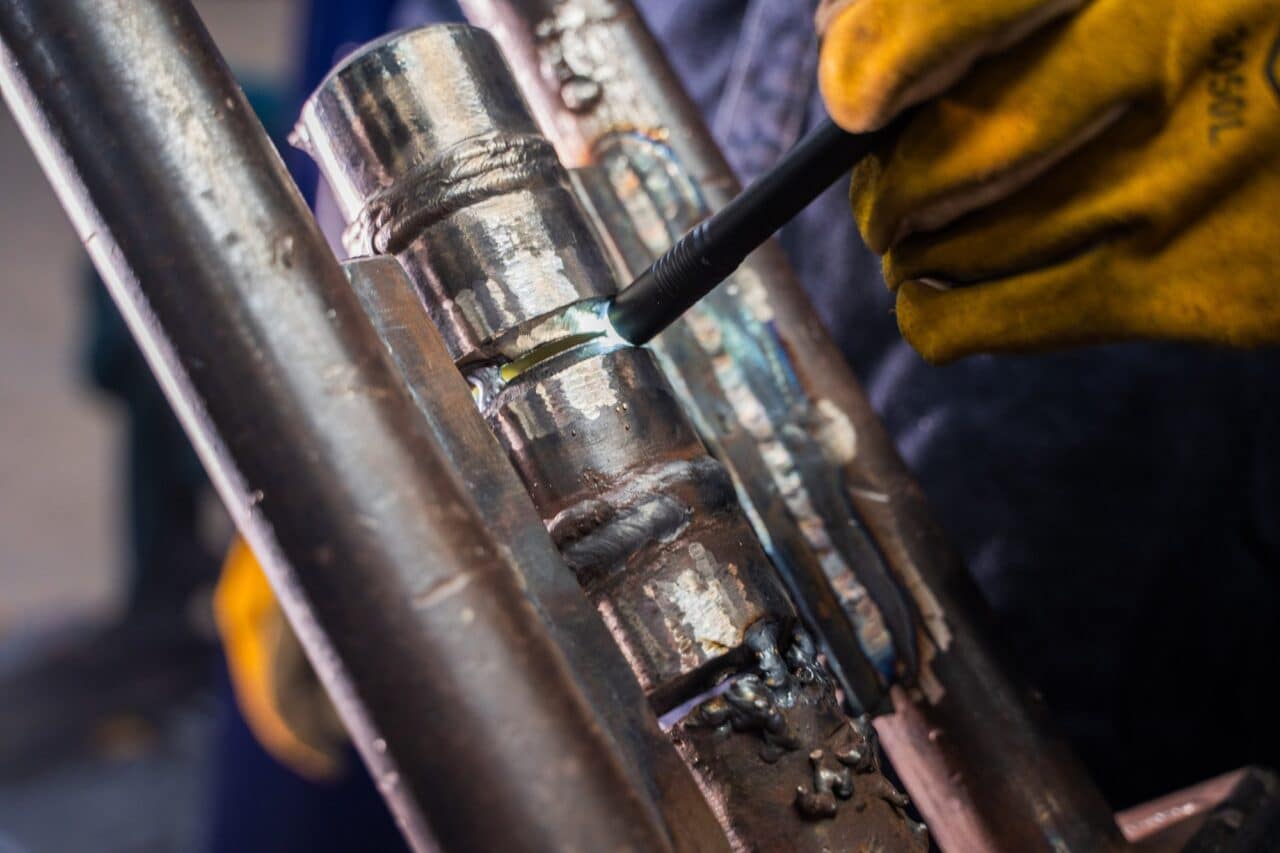

In facilities where product purity can mean the difference between safety and contamination, TIG welding serves as the gold standard for joining stainless steel components. Food processing plants and pharmaceutical manufacturers rely on welding techniques that produce clean, corrosion-resistant joints capable of withstanding rigorous cleaning protocols and maintaining sterile conditions. Unlike MIG or stick welding, TIG welding offers the control and precision necessary to create the smooth, crevice-free welds these industries require.
Why TIG Welding is Essential for Sanitary Applications
TIG welding produces cleaner welds than other arc welding processes because it generates minimal spatter and fumes. The process uses a non-consumable tungsten electrode to create the arc while a separate filler rod adds material to the joint. This separation gives welders precise control over heat input and filler metal deposition, resulting in smooth, uniform beads with excellent surface finish.
Superior Weld Quality and Cleanliness
For food and pharmaceutical applications, this cleanliness matters significantly. Welds must be free from porosity, undercut, and surface irregularities where bacteria or product residue could accumulate. The FDA and 3-A Sanitary Standards Institute specify that surfaces in contact with food products must be smooth and free from crevices that could trap contaminants.
Precision for Thin-Walled Applications
Much of the tubing and equipment in sanitary systems uses thin-walled stainless steel, often ranging from 0.065 to 0.120 inches in thickness. TIG welding excels at joining these materials without burn-through or warping. The foot pedal or fingertip amperage control allows welders to feather the heat precisely, maintaining puddle control on delicate sections.
Selecting the Right Stainless Steel Grades
Not all stainless steel performs equally in food and pharmaceutical environments. Material selection affects both the welding process and the long-term performance of the finished product.
Common Grades for Sanitary Applications:
- 304 Stainless Steel: The workhorse grade for food processing equipment, offering good corrosion resistance and weldability. Suitable for most general food contact applications.
- 316 Stainless Steel: Contains molybdenum, providing superior resistance to chlorides and acidic environments. Preferred for pharmaceutical equipment.
- 316L Stainless Steel: The low-carbon version of 316, with carbon content below 0.03%. Reduces sensitization risk during welding and stands as the industry standard for pharmaceutical-grade equipment.
The "L" designation (low carbon) in 304L and 316L grades becomes particularly relevant for TIG welding. These alloys resist sensitization better than their higher-carbon counterparts, making them more forgiving during the welding process.
Critical TIG Welding Techniques
Tungsten Electrode Selection and Preparation
For stainless steel, 2% lanthanated (blue) or 2% ceriated (orange) tungsten electrodes work well, offering good arc starting characteristics and longevity. Grind the electrode to a point for DC welding, with the taper length approximately 2.5 times the electrode diameter. Grind lengthwise along the electrode rather than perpendicular to avoid circumferential marks that can cause arc wander.
Gas Shielding and Back Purging
Proper shielding gas coverage protects the weld from atmospheric contamination. Use pure argon (99.996% or higher) for the primary shielding gas.
Back Purging Essentials:
- Always purge the inside of pipe and tubing when welding full-penetration joints
- Use argon or argon/hydrogen mixtures for back purging
- Maintain purge gas flow until the weld cools below 300°F
- Target oxygen levels below 50 ppm inside the pipe for optimal results
Without adequate back purging, sugaring occurs on the root side of the weld. This oxidation creates a rough, discolored surface that fails sanitary standards and compromises corrosion resistance.
Heat Input Management
Controlling heat input prevents distortion, maintains corrosion resistance, and produces consistent penetration. Excessive heat causes warping of thin materials, sensitization of the heat-affected zone, and excessive grain growth that weakens the weld.
Keep the arc length short, typically one electrode diameter or less. A tight arc concentrates heat into a smaller area, improving penetration while reducing the overall heat-affected zone. Travel at a consistent speed that allows the puddle to wet out properly without lingering too long in one spot.
Achieving Smooth, Flush Weld Profiles
Sanitary welds should be flush or slightly convex, blending smoothly into the base metal without undercut or excessive reinforcement. Undercut creates a crevice that traps contaminants. Excessive reinforcement creates a raised area that's difficult to clean.
Walking the cup provides one technique for achieving consistent bead profiles on pipe and tubing. Rest the gas cup against the work surface and pivot it in small, controlled movements while advancing along the joint. This stabilizes the torch and maintains consistent arc length and travel speed.
Surface Finish and Post-Weld Treatment
Surface roughness in sanitary applications is measured in Ra (roughness average) values, typically specified in microinches. FDA guidelines recommend Ra values of 32 microinches or less for product contact surfaces in food processing. Pharmaceutical applications often require 20 Ra or even 15 Ra for critical surfaces. Achieving sanitary-grade finishes also requires post-weld treatment.
Pickling and Passivation
Pickling removes heat tint and contamination from the weld area using acidic solutions, typically citric acid or nitric acid-based formulas. This process restores the weld surface to a clean, metallic finish.
Passivation follows pickling to rebuild the chromium oxide layer that provides corrosion resistance. Both processes require thorough rinsing with clean water to remove all chemical residues.
Electropolishing for Pharmaceutical Applications
Electropolishing removes a thin layer of metal through an electrochemical process, creating an extremely smooth surface. This treatment achieves several goals: it reduces surface roughness to 15 Ra or better, removes any embedded contaminants, and enhances the chromium oxide layer for superior corrosion resistance.
Quality Control and Compliance
Multiple organizations establish standards for sanitary welding. ASME BPE (Bioprocessing Equipment) covers design, materials, and fabrication requirements for pharmaceutical equipment. 3-A Sanitary Standards apply to equipment used in dairy and food processing. FDA regulations establish requirements for food contact surfaces and pharmaceutical manufacturing equipment.
Sanitary systems require documentation that traces materials, welding procedures, and welder qualifications. Visual inspection remains the primary method for evaluating sanitary welds, checking for smooth bead profiles, absence of undercut, and freedom from defects.
Building Your Skills in Sanitary Welding
Mastering TIG welding for food processing and pharmaceutical applications requires hands-on practice under qualified instruction. The techniques outlined here form the foundation, but developing the muscle memory and visual judgment to produce consistent, code-quality welds takes time and repetition.
Understanding the "why" behind each technique helps you make good decisions when facing unfamiliar situations. Knowing that back purging prevents oxidation helps you troubleshoot when sugaring appears. Recognizing that excessive heat causes sensitization helps you adjust your technique to prevent it.
